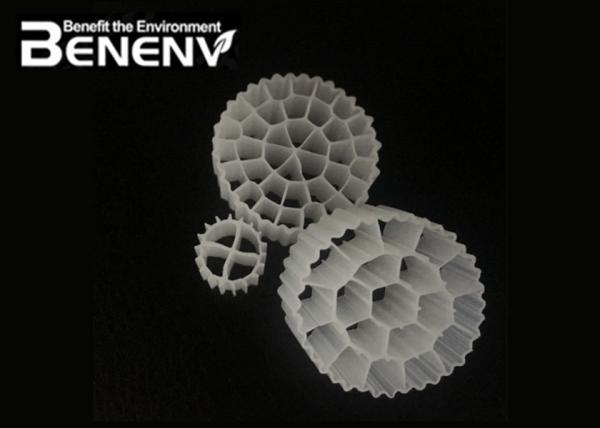

Filter Media Moving Bed Biofilm Reactor Biofilm Carrier For Sewage
Treatment
Product Introduction
Moving Bed Biofilm Reactor(MBBR) is a moving media system, used in
Integrated Fixed-lm Activated Sludge (IFAS) and moving bed biofilm
reaction (MBBR) system.
Bio Media moving bed bio reactor reactor (MBBR) filter media has a
well-documented history in filter applications. Bio Media may be
used for pond filters, aquaponics, hydroponics, sewage treatment,
DIY applications, and more. Bio Media is slightly buoyant and
perfect for mechanical or biological filtration.
Main Features:
(1) Geometricconfiguration based on hydrodynamics to strengthen the
surface adhesive ability. it is polymer material, having high shock
resistance.
(2) Large specific surface aera, many adhesive biologia.It not only
provides the room for heterotrophic bacteria growing but also
create the condition for autotrophic bacteria growing. Meanwhile,
it is beneficial for the biologia to denitrification and
dephosphorization.
(3) No need of bracket, easy to fluidify, save energy
consumption.The suitable specific weight makes the filler in
suspended fluidization state, reducing the eneray consumption and
increasing the shock and cutting of bubbles. In the same condition,
the aeration amount can be lowered by above 10%.
| Model Specification | B1-10-7.5 | B3-25-10 | B5-25-8 |
| Diameter×Height (mm) | Φ10×7.5 | Φ25×10 | Φ25×8 |
| Density (g/cm3) | 0.96-0.99 | 0.96-0.99 | 0.96-0.99 |
| Mean thickness (mm) | 0.40 | 0.35-0.40 | 0.30-0.35 |
| Weight (kg/m3) | 150-160 | 100-110 | 110-120 |
| Surface area (m2/m3) | ≥750 | ≥600 | ≥750 |
| Dosing ratio (%) | 10-50 | 15-65 | 10-60 |
| Material | HDPE | HDPE | HDPE |
| Service life (year) | ≥20 | ≥20 | ≥20 |
Application
MBBR biofilm carrier can be used in both aerobic process and
anaerobic process.
1. The Sewage plant upgrade project , improve the standard and
quantity .
2. New sewage treatment project of MBBR and Biological Aerated
Filter process.
3. Biochemical treatment of reclaimed water.
4. River regulation denitrification and phosphorus removal.
5. Aquaculture in addition to ammonia nitrogen, water purification.
6. Biological filter media is used for biological deodorization
tower.
Process Principal:
The waste water go through the suspending media of MBBR reactor,
form the biological membrane on the surface of the media gradually,
with the action of the microbial on the biological membrane, the
waste water is purified. The media can move freely in the reactor
with the mixing of the water; For the aerobic reactor, the aeration
will make the media move; For the anaerobic reactor, mechanic
mixing will make the media move. Our MBBR media is new-developed
media for the MBBR process, has better treatment effect compare to
traditional media.
Packing and Delivery
Samples :Lead time: 3-5 working days.
Charge:The buyer pays the sample cost and freight.
Mass order Production :
Lead time: 10-15 working days after receipt of deposit.
Shipment Method :
By Aircargo: Different Airline for your optional with good price .
By Sea : Different shipping company for your optional with good
price .
By Express : DHL ,TNT, FedEx,UPS,EMS etc.
You can choose your own shipping company.
